Gwieke M3 Ultra 1200W Fibre and 130W CO2 6-in-1 Laser Machine
Original price was: $37,900.00.$31,450.00Current price is: $31,450.00.
5 in stock
NZ Local Stock
Gweike M Series: The Ultimate 6-in-1 Laser Powerhouse!
Traditional fiber lasers have been costly and bulky, limiting their reach to home and small business now. The Gweike M Series 6-in-1 redefines accessibility, blending a 1200W fiber laser for precision metal cutting and welding with 130W CO2 lasers for intricate engraving and non-metal cutting. By eliminating the need for multiple machines, slashing costs with 5X faster welding, and delivering razor-sharp 0.02mm precision, making high-performance laser processing more affordable and accessible than ever.
6-in-1 Functions:
1. CNC fibre metal cutting (1200W Fibre laser for all metals)
2. COâ‚‚ Cutting for non metals (wood, acrylic, etc.)
3. COâ‚‚ Engraving
4. Fiber Welding
5. Fiber Laser Cleaning (rust, paint removal)
6. Hand held fiber cutting/welding
1,380mm × 920mm Work Area
Price includes GST, please contact us for shipping quote and delivery arrangements
M3 ULTRA Specifications
Machine Size & Weight
CNC gantry unit: 2 185 × 1 780 × 1 100 mm (L × W × H)
Hand-held fiber module: 620 × 355 × 610 mm
Total weight: approx. 610 kg
Cable lengths: 10 m (CNC unit), 8 m (hand-held)
Laser Power & Working Area
Fiber laser: 1200 W
COâ‚‚ laser: 130 W
Working area: 1380 × 920 mm (≈ 54″ × 36″)
Performance Specs
Fiber welding thickness: up to 0.2–5 mm

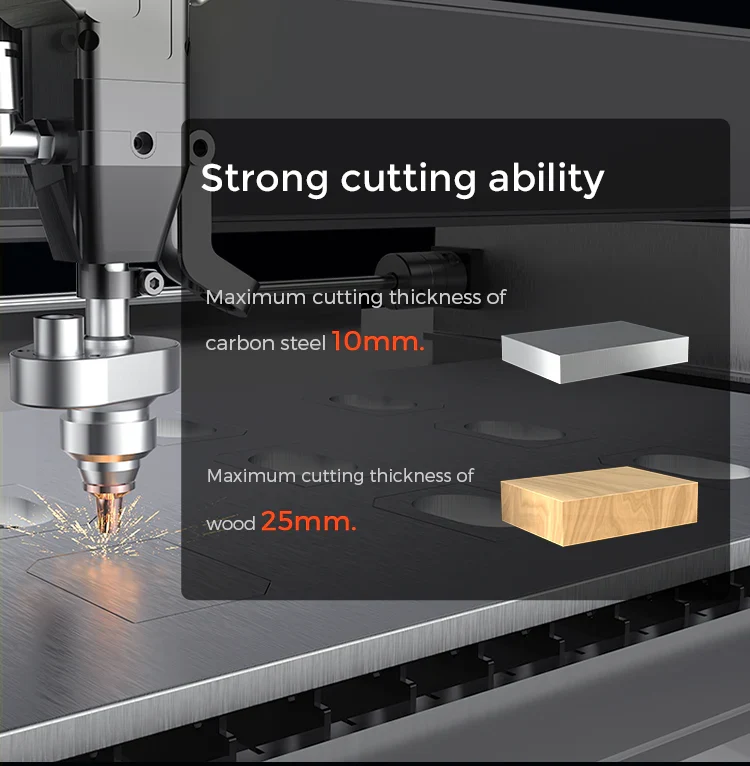

Cutting thickness: fiber ≤10 mm; CO₂ ≤20 mm
CNC engraving: up to 800 mm/s
CNC cutting: up to 500–600 mm/s
Position accuracy: ±0.03 mm; locating ±0.01 mm
Acceleration: up to 0.8 G (CNC)
Min engraving size: 1x 1 mm
Components & Software
Fiber source: MAXPhotonics or Raycus
COâ‚‚ tube: RECI
Laser head/control: Au3tech, with Windows/Linux control software
Supported file formats: DXF, DWG, AI, PDF, DST, PLT, BMP, JPG, PNG
Cooling & Power
Cooling system: air + water chiller
Power input: dual 230 V, 50 Hz, 20 A single-phase
Optional Accessories
Dry Air Compressor, bed, rotary attachment, air filter, HP3000/20DYHY compressor
Industrial-grade exhaust/air regulation options
Highlights
Combines high-power fiber and COâ‚‚ lasers in a single desktop system
Broad versatility: cutting, engraving, welding, cleaning, both CNC and hand-held
| Weight | 750 kg |
|---|
