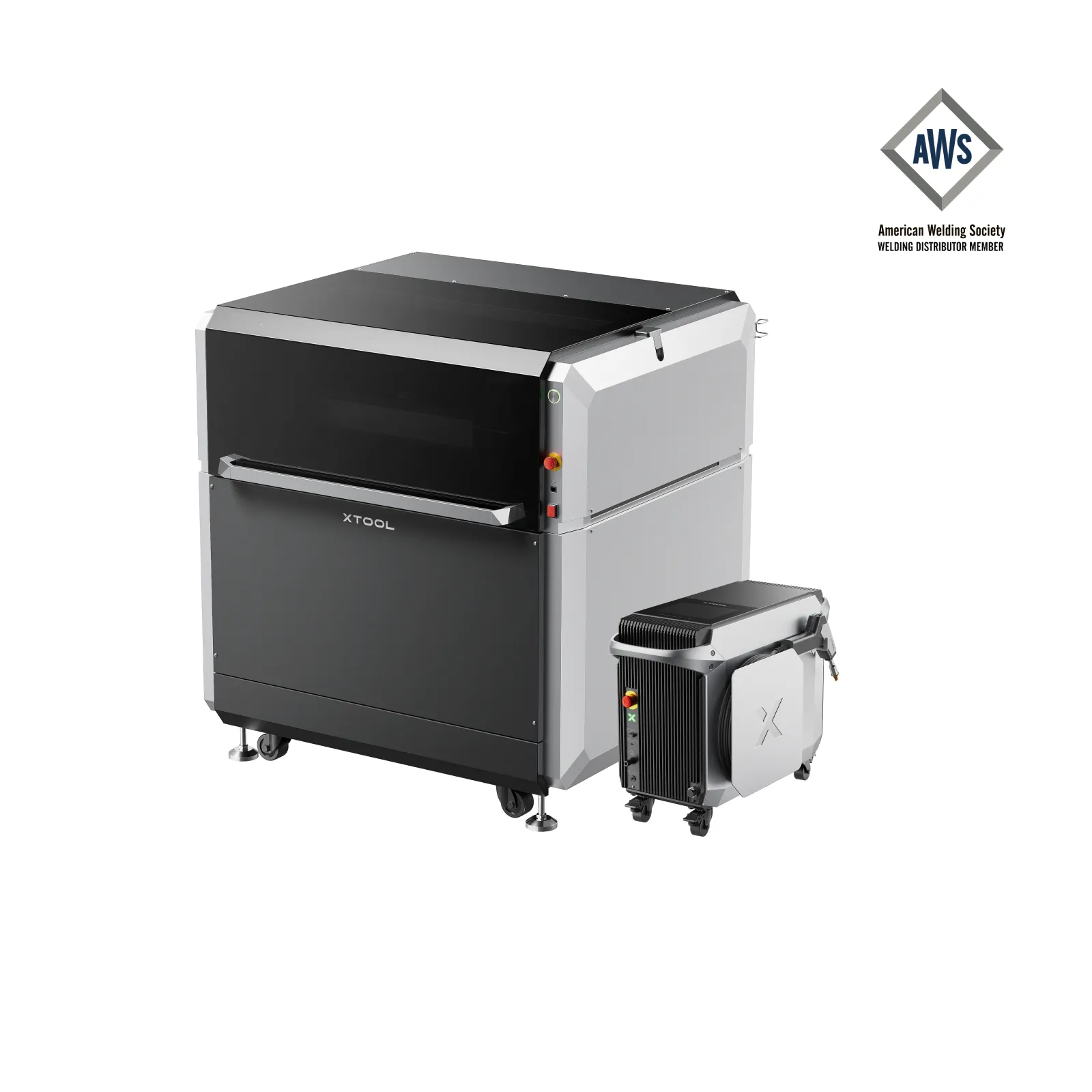

xTool MetalFab Laser Welder/ CNC Cutter 1200W Combo

• All-in-One Metal Workshop for Small Businesses & DIYers: Weld, cut, and clean with one device. MetalFab meets small-batch needs in metalworking, repair, or crafting, saving space, labor, and costs.
• Industrial-Grade Performance: Deliver precise welds and cuts on stainless steel, carbon steel, brass, and aluminum with professional stability.

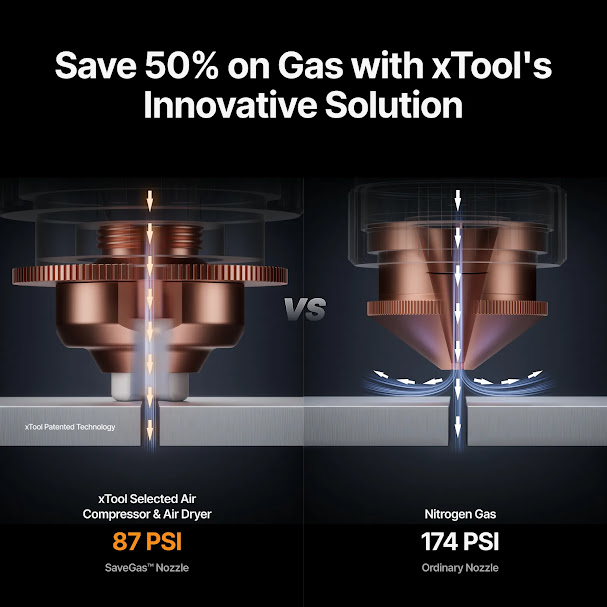

• Exclusive Technology for Enhanced Efficiency:Smart dual cameras, VibeFreeCut™, FlexiTrack™, and SaveGas™ ensure flawless cuts, reducing costs and improving ROI.

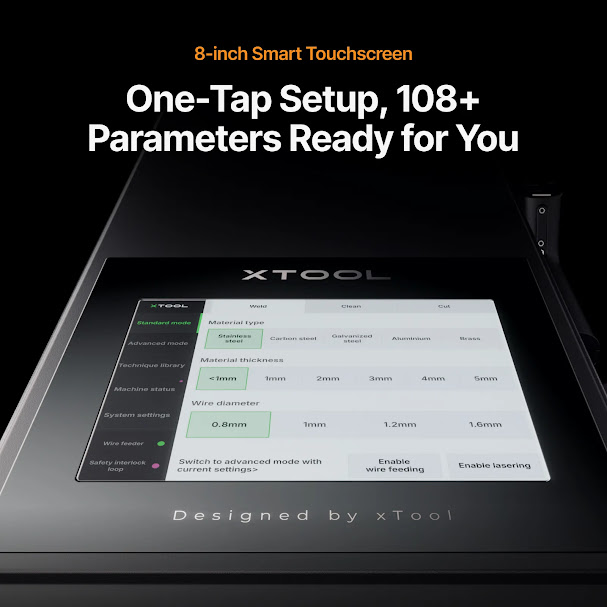

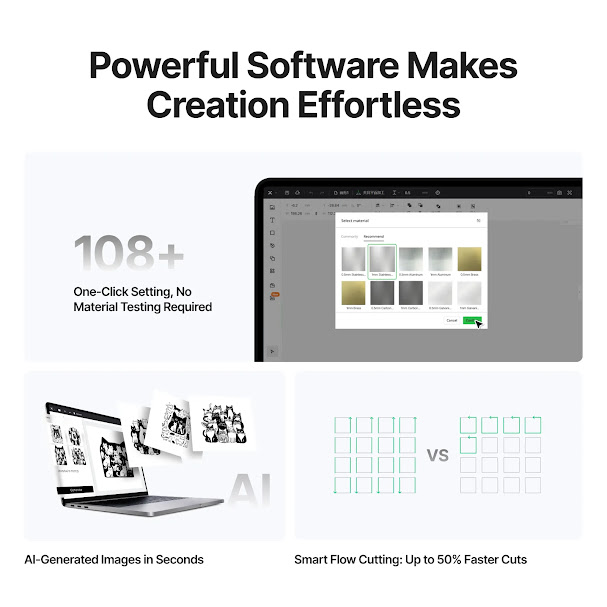

• Easy for Everyone – Low Learning Curve: One-click, built-in 108+ parameters make it simple to create in minutes, without the need for specialized training.
• Quality and Safety Guaranteed: 10,000+ hours laser lifespan, 24/7 stable output, and 10 safety features for reliable operation in tough conditions (-10°C to 40°C).

Package Includes:

1200W Fiber Laser Welder & CNC Cutting Machine

Processing Capacity

Laser Power 1200W

Laser Type Fiber Laser

Processing Mode Welding / Cutting / Rust Removal & Cleaning

Welding Mode Seam Welding/Tack Welding/Pulse Welding

Supported Materials

Stainless steel: 304/316/410/430

Aluminum/aluminum alloy: 1060/5083/6061/6063/7075

Carbon steel: A36/Q235/1095/#45

Titanium/titanium alloy: Gr.5/Ti-15V-3Cr-3Sn-3Al

Brass: C26000/C28000/C36000

Galvanized sheet: DX51D

Magnesium alloy, Nickel alloy, Zinc alloy, and more

Processing Thickness

0.0078 – 0.197 in
(0.2 – 5 mm)

Cleaning Width

Max. 1.77 in (45 mm) Rust/Paint Cleaning

Max. 0.39 in (10 mm) Post-weld Cleaning

Wavelengths 1080 ± 10 nm

Photoelectric Conversion Rate 36%

Recommended Gases Welding: 99.99% Nitrogen or 99.99% Argon
Cutting/Cleaning: 99.99% Nitrogen or 99.99% Argon or Air

Cooling System Air-cooling

Safety Certification Class 4 Laser Safety

Rated Power 4200W

Input Voltage 200 – 240V, AC 50/60Hz

Full-load Current MAX 21A

Storage Temperature 14 ℉ – 140 ℉ (-10 ℃ – 60 ℃)

Operation Temperature 14 °F – 104 ℉ (-10 ℃ – 40 °C)

CNC Cutter:

Processing Mode

CNC Cutting/CNC Rust Removal & Cleaning/CNC Engraving
Only applicable to non highly-reflective metals like stainless steel, carbon steel, galvanized sheet, anodized aluminum, etc. Not for brass, copper, silver, etc.

Cutting Thickness

Burr-free with 1200w welder: Max. 0.39 in(10 mm) carbon steel/galvanized sheet, 0.2 in(5 mm) stainless steel/titanium, 0.16 in(4 mm) aluminum, 0.12 in(3 mm) brass Min. 0.008 in(0.2 mm) metals

Max. Cutting with Burrs (1200w) Max. 0.47 in(12 mm) carbon steel/galvanized sheet, 0.35 in(9 mm) stainless steel, 0.24 in(6 mm) aluminum/titanium, 0.16 in(4 mm) brass

Working Area 24.02 × 24.02 in (610 × 610 mm)

Pass-Through Size 24.02 × ∞ in (610 × ∞ mm)

Max. Working Speed 15.75 ips (400 mm/s)

Motion Accuracy ± 0.0039 in (± 0.1 mm)

X/Y Axis Max Speed 0.1G

X-Axis Travel 24.02 in (610 mm)

Y-Axis Travel 24.02 in (610 mm)

Z-Axis Travel 3.54 in (90 mm)
